Details

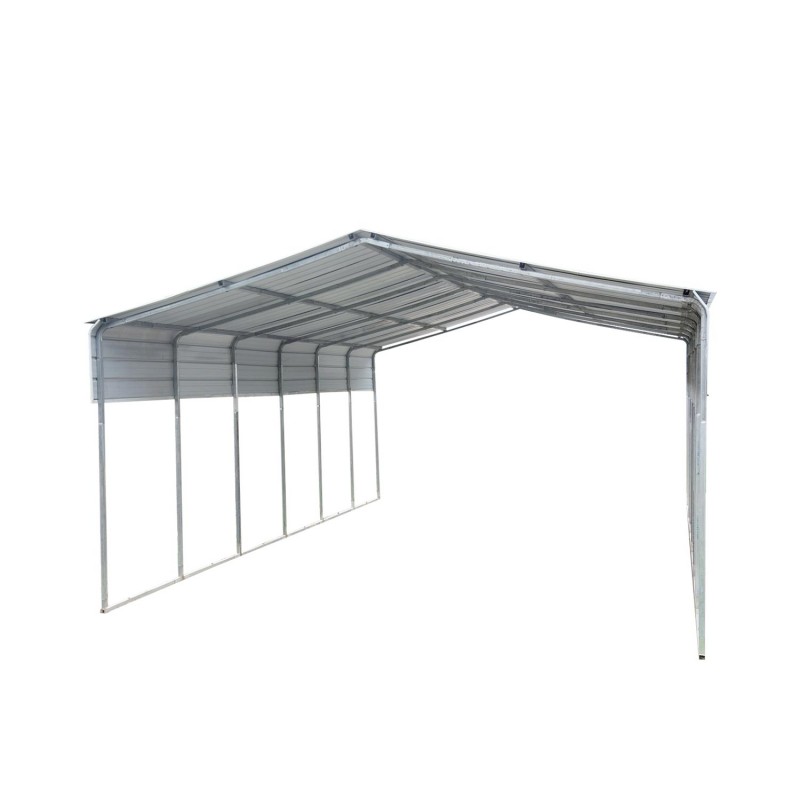

Portable Carport 6mx9m Vehicle Shelter
Description:
- Overall Dimension: 6.2m wide x 9.2m Deep x 3.2m High
- Water-proof materials, 900mm corrugated color steel panel in 0.35mm
- Heavy-duty galvanized square tube: approx. 50mm x 50mm x 1.8mm Thickness
- Instruction drawing, step by step
- 7 sets of 50x50mm galvanized support frames and footing beam on each side of walls
- Extra 2 wall bracing on top of each side of the wall
- Structure sound, No quality compromised, and Water leakproof
- Considered as a medium to heavy-duty carport/shelter
- Good for portable/ temporary purpose as well as long-term use ( need to bolt into the ground, anchors provided)
Specifications:
- Colour: Cream
-
- Overall size: 6.2x9.2m (Width and Depth)
- Frame size: 6x9m (Width and Depth)
- Height: 2.4(Wall)/3.2m (Ridge)
- Support Beam Size:50 x 50 x 1.8mm Hot Dip Galvanised steel tube
- Material:0.35mm Double pressed ColourSteel sheets
Packaging:
Flat packed - Total 9 cartons:
- 220cm x40cm x 15cm 1PC
- 220cm x 35cm x 11cm 5PCS
- 97cm x 170cm x 3CM 3PCS
- Total weight: 525kg approx
Dimention of pallet, 220x120x50cm approx
Comment:
For Assembly, The structure of this carport/shelter is joined together by bolts and nuts, the roof sheets are secured onto the structure by self-tapping screws.
The average time for carport/shelter assembly for 2 people is approximately 1 day, not including the base. It may take longer or shorter depending on your experience, tools, site access, and how many helpers you have, etc. The assembly process is relatively straightforward and the steps to install are illustrated in the manual. It is up to the buyer to assemble the shelter and also to determine the base type.
All parts and accessories come in flat packed and ready for assembly. Please note that some parts may be slightly scratched or dented due to the transport process but are still very structurally sound.
NOTE:
Due to the size and weight of the packages, the item must be loaded only onto a suitable vehicle by forklift. It cannot be manually handled in any way whatsoever when loading on collection or delivery. If you request delivery you must have a forklift available to unload from the delivery vehicle.
