Metal Carport Shelter 3.3x6M Green

More Views

Metal Carport Shelter 3.3x6M Green

Product ID: 76512

Availability: Out of stock

$1,499.00

calculate

Quick Overview

Pickup is available in Melbourne, Please call us on 1300 144 100 during office hours to see pickup location(s) currently available.Delivery available Aus-wide, Please use the Postage calculator to check shipping cost.

| Add to Compare

Email to a Friend

Details

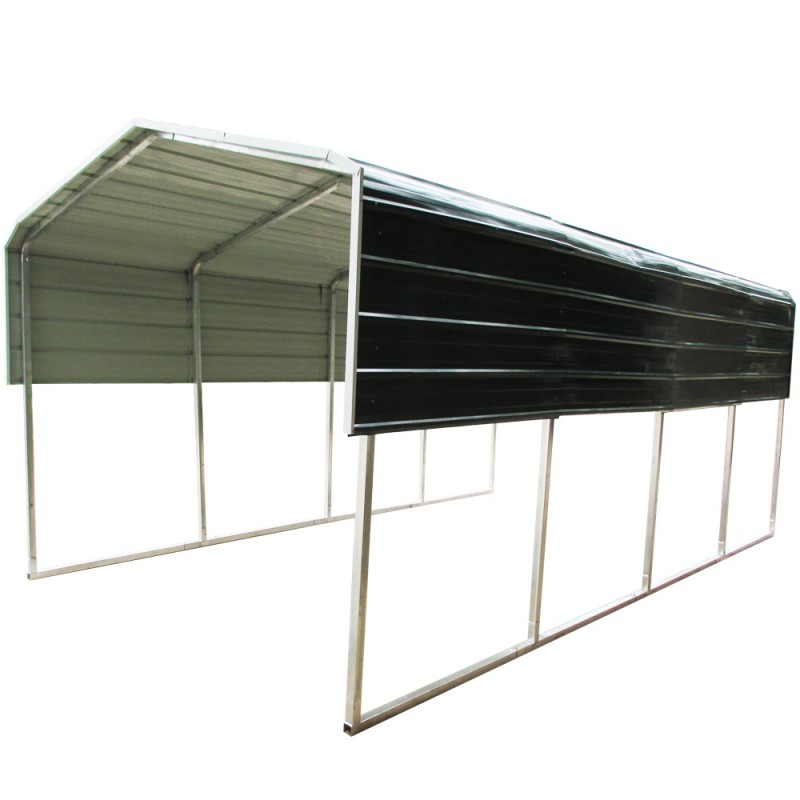

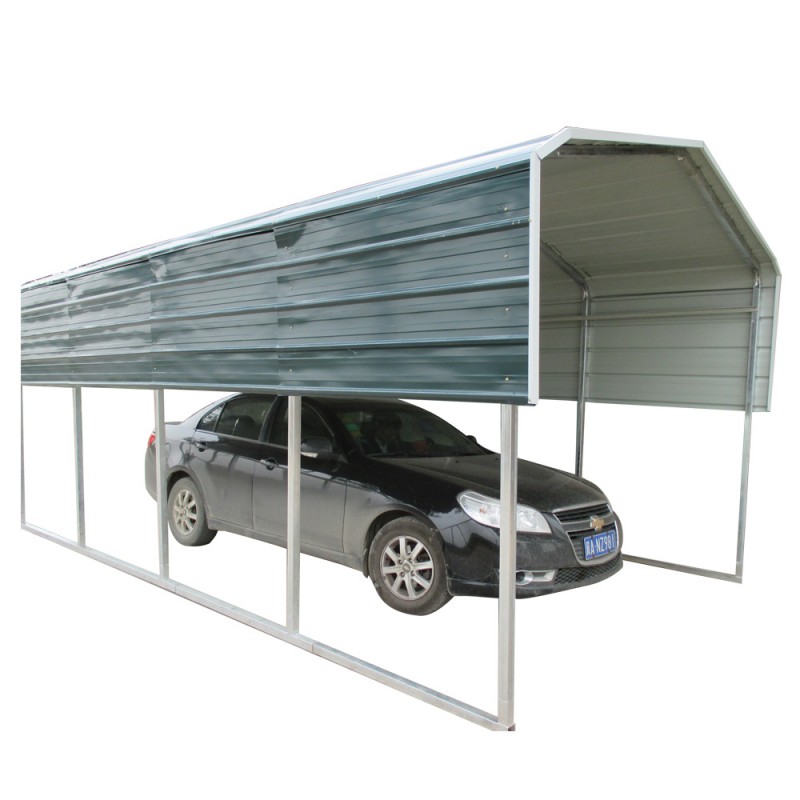

Portable Carport 3.3mx6m Vehicle Shelter

Description:

- Overall Dimension: 3.3m wide x 6m Deep x 2.84m High

- Water-proof materials, 900mm corrugated colour steel panel in 0.35mm

- Heavy-duty galvanized square tube: approx. 50mm x 50mm x 1.6mm Thickness

- Instruction drawing, step by step

- 5 sets of support frames spaced by the distance of about 1.5m to provide a very strong structure support system.

- Good for portable/ temporary purpose as well as long term use ( need to bolt into the ground, anchors provided)

Specifications:

Colour: Green
Overall size: 3300mm x 6000mm(Width and Depth)
Height: 2400mm(Wall)/2840mm(Ridge)
Support Beam Size: 50 x 50 x 1.8mm Hot Dip Galvanised steel tube
Material: 0.35mm Double pressed ColourSteel sheets

Packaging:

Carton 1): 220cm x 40cm x 16cm(102kg)
Carton 2): 220cm x 45cm x 11cm(76kg)
Carton 3): 170cm x 97cm x 3cm(95kg)
Total Weight: 273kg

Comment:

For Assembly, The structure of this carport/shelter is jointed together by bolts and nuts, the roof sheets are secured onto the structure by self-taping screws. The average time for carport/shelter assembly for 2 people is approximately 1day, not including the base. It may take longer or shorter depending on your experience, tools, site access and how many helpers you have etc. The assembly process is relatively straight forward and steps to install are illustrated in the manual. It is up to the buyer to assemble the shelter and also to determine the base type.

All parts and accessories come in flat packed and ready for assembly. Please note that some parts may be slightly scratched or dented due to the transport process but are still very structurally sound.

NOTE:

Due to the weight of the boxes, it is required to be placed on pallets and shrink-wrapped for delivery and/or pick up.

For delivery, if you don't have a forklift or unloading crane to unload from the delivery truck, the driver has the right to refuse to help manually unload due to health and safety regulations.

If you intend to pick up the item, please note that you must bring a commercial vehicle to the warehouse as it will be loaded by a forklift on a pallet.
